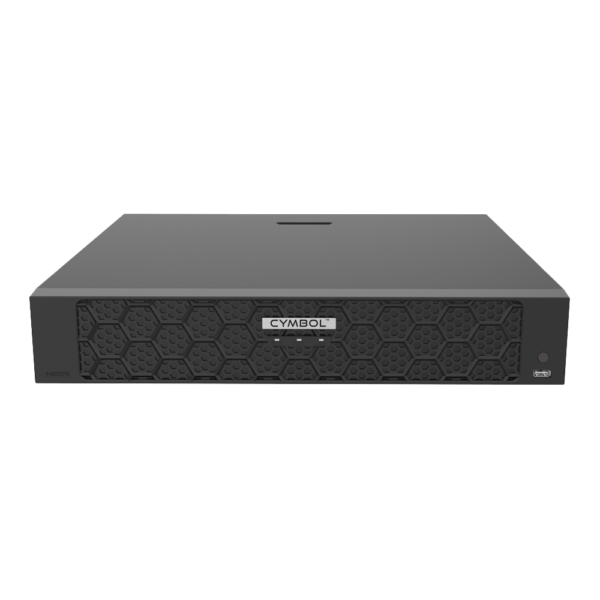

Cymbol 4K 32CH 16POE NVR V2

Cymbol 4K 32CH 16POE NVR V2

• Supports up to 32 IP Camera inputs
• Video Content Analysis, LPR, & Facial Recognition
• Up to 16MP resolution recording
• Supports Ultra 265/H.265/H.264 video formats
• 16 independent PoE network interfaces
• Supports 1-ch HDMI & 1-chVGA Simultaneously, HDMI up to 4K(3840×2160) resolution
• 4 SATA HDD up to 10TB
• Various fisheye dewarping modes
• ANR Technology
• 320Mbps of Incoming Bandwidth
• Supports cloud upgrades

SKU: CY-NVR4K-32-16P-V2 Category: Tags: , , , , , , , ,

Description





Model CY-NVR4K-32-16P-V2
Video/Audio Input
IP Video Input 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6
Video/Audio Output
HDMI/VGA Output HDMI:
4K (3840×2160/30Hz), 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60, 1920x1080p/50, 1280×1024/60, 1600×1200/60, 1280×720/60, 1024×768/60Hz
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra265/H.265/H.264
Live view/Playback

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability

Ultra 265/H.265:
2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264:
2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA 4 SATA interfaces
Capacity Up to 10TB for each disk

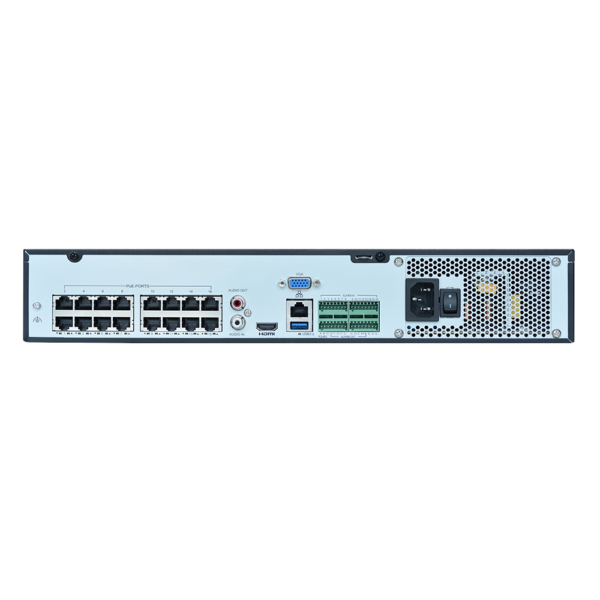

External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
Serial Interface 1 x RS485
Alarm In 16-ch
Alarm Out 4-ch
PoE
Interface 16 RJ-45 10M/100M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 150W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC
Power Consumption: ≤20W(without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 400mm ×368mm × 74mm (15.7″ × 14.5″ × 2.9″)
Weight (without HDD) ≤4kg (8.82lb)

CY-NVR4K-32-16P-V2 Data/Sell Sheet

Download
