Description

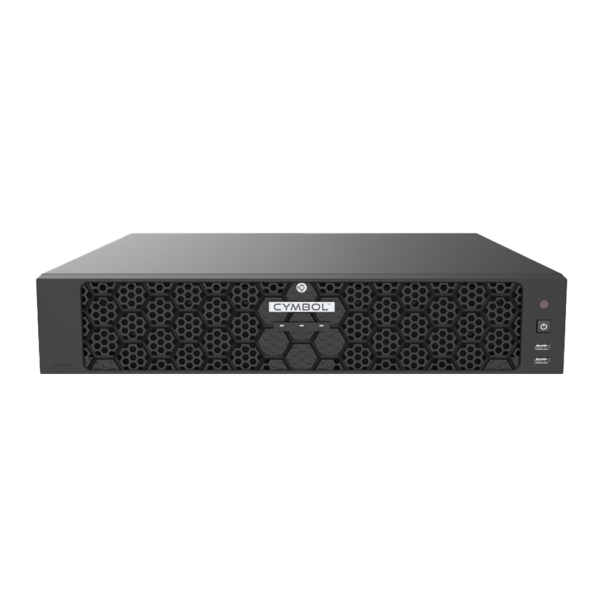

| Model #: | CY-NVR4K-64RAID-V2 | |
| Video/Audio Input | ||
| IP Video Input | 64-ch | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 384Mbps | |
| Outgoing Bandwidth | 384Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI1/HDMI2: 4K(3840×2160)/60Hz, 4K(3840×2160) 30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA1/VGA2: 1920×1080/60Hz,1920×1080/50Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz,1024×768/60Hz |
|
| Audio Output | 2-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 | |
| Hard Disk | ||
| SATA | 8 SATA interfaces | |
| Capacity | Up to 16TB for each HDD | |
| eSATA | 1 eSATA interface | |
| Smart | ||
| VCA Detection by IPC | Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring | |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, General Search, People Counting Report, Heat Map | |
| Smart by IPC | Total 16-ch (Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring) | |
| Disk Array | ||
| Array Type | RAID 0, 1, 5, 6, 10 | |

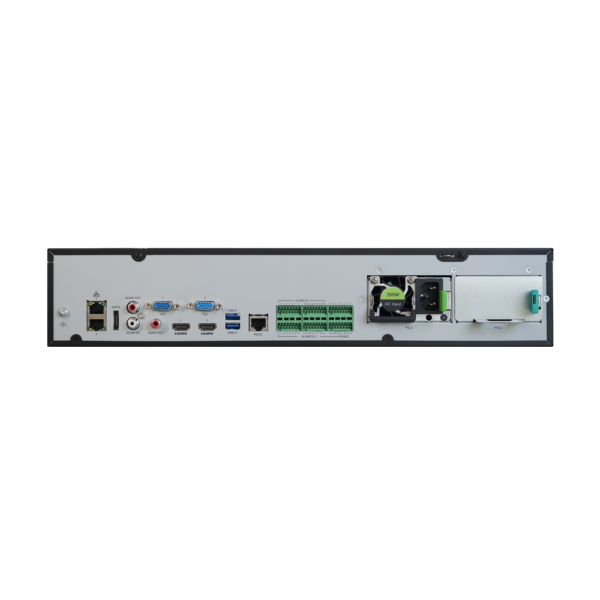

| External Interface | ||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 x RS232, 1 x RS485 | |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 |
|
| Alarm In | 16-ch | |
| Alarm Out | 10-ch | |
| General | ||
| Power Supply | 100 ~ 240 VAC Power Consumption: ≤ 20 W( without HDD ) |
|
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 442mm ×448mm ×93mm (17.4″ × 17.6″×3.7″) | |
| Weight (without HDD) | ≤ 6 Kg (13.23 lb ) | |
