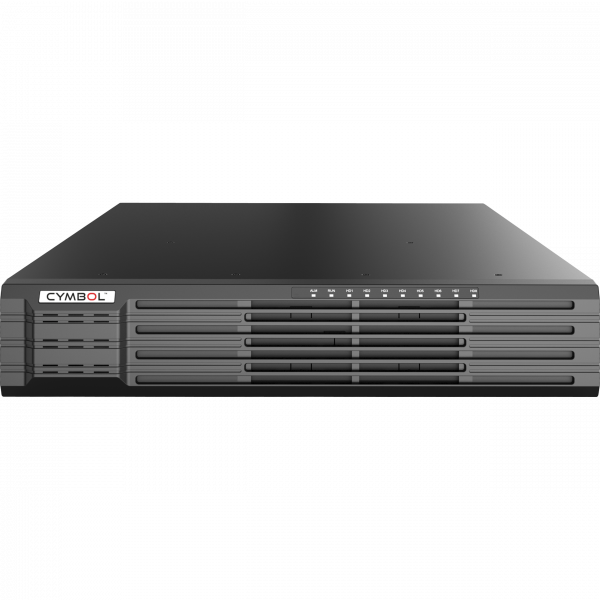

Cymbol 4K 64CH RAID NVR

Cymbol 4K 64CH RAID NVR

  • Support Ultra 265/H.265/H.264 video formats
  • 64-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840×2160) resolution
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 8 SATA HDDs, up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Support N+1 Hot spare
  • Support for 12V Power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Description

Model #: CY-NVR4K-64RAID
Video/Audio Input
IP Video Input 64-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols SNMP,P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
HDMI2:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
CVBS Output 1-ch, BNC
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity Up to 10TB for each HDD
eSATA 1 eSATA interface
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
Disk Array
Array Type RAID 0, 1, 5, 6, 10

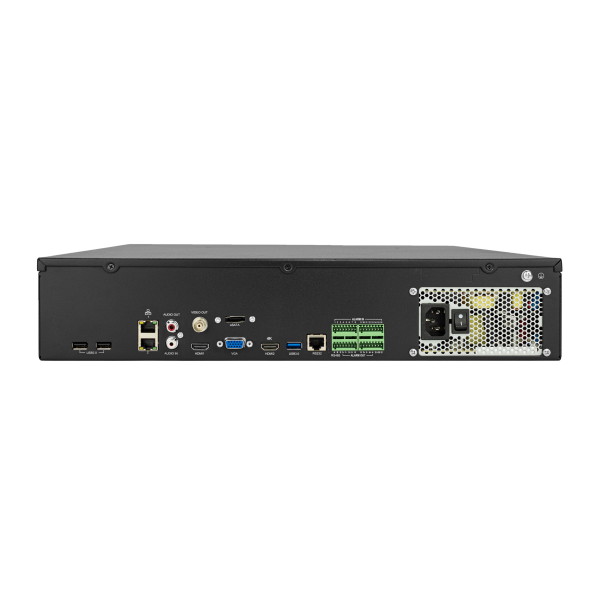

External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Rear panel: 2 x USB2.0, 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100 ~ 240 VAC
Power Consumption: ≤ 20 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 442mm ×531mm ×86mm (17.4″ × 20.9″×3.4″)
Weight ( without HDD ) ≤ 5.13 Kg (11.31 lb )
