Description

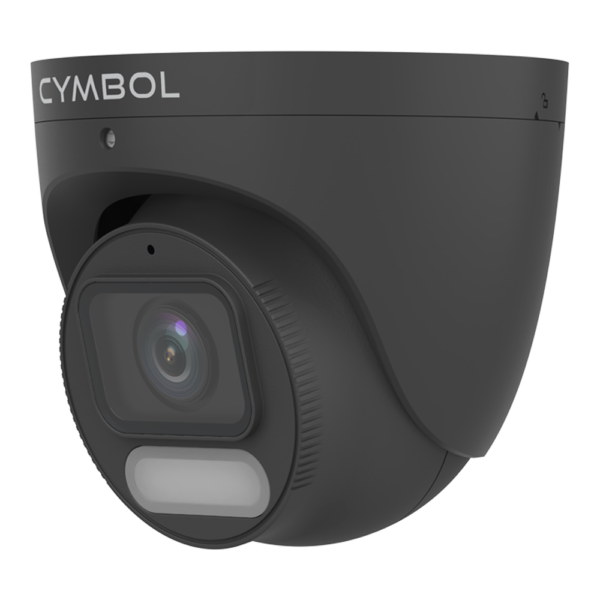

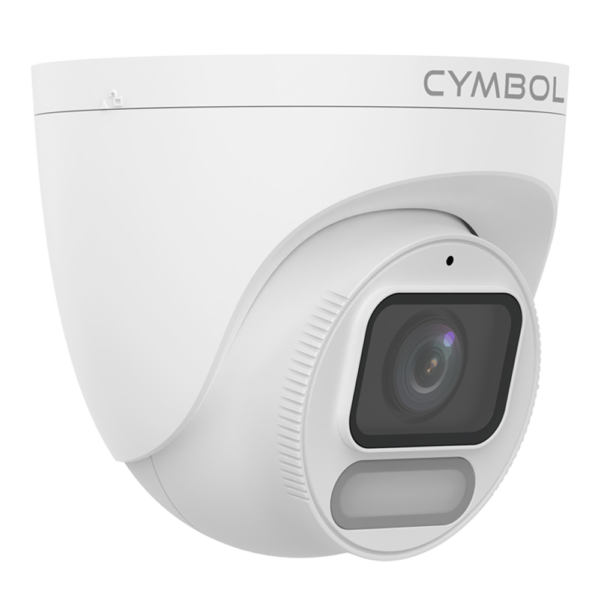

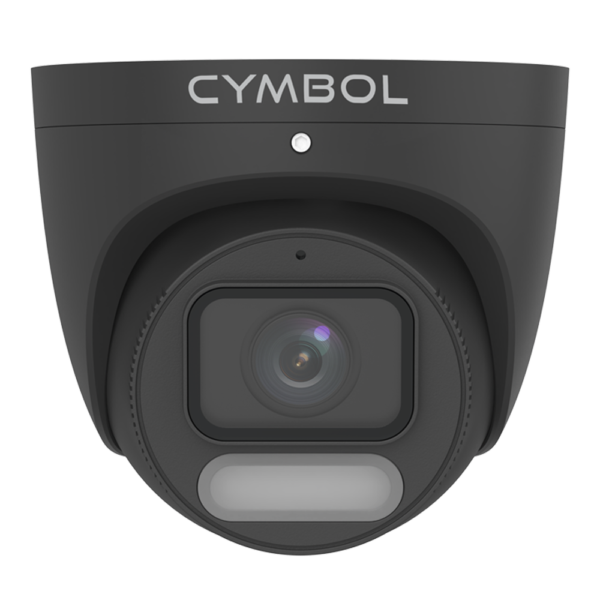

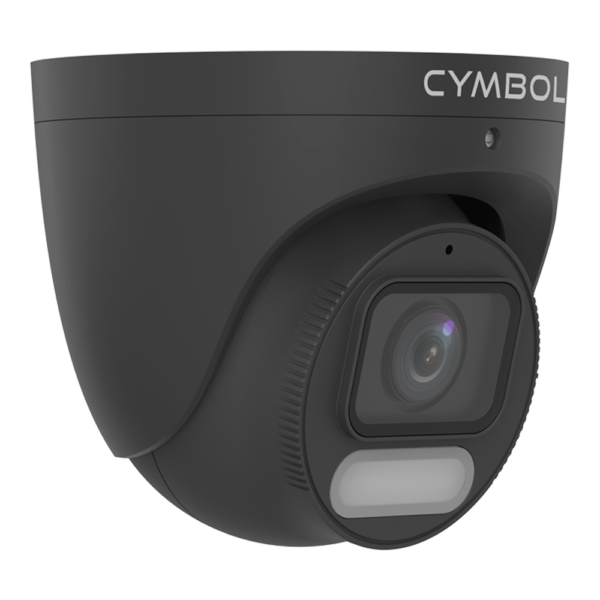

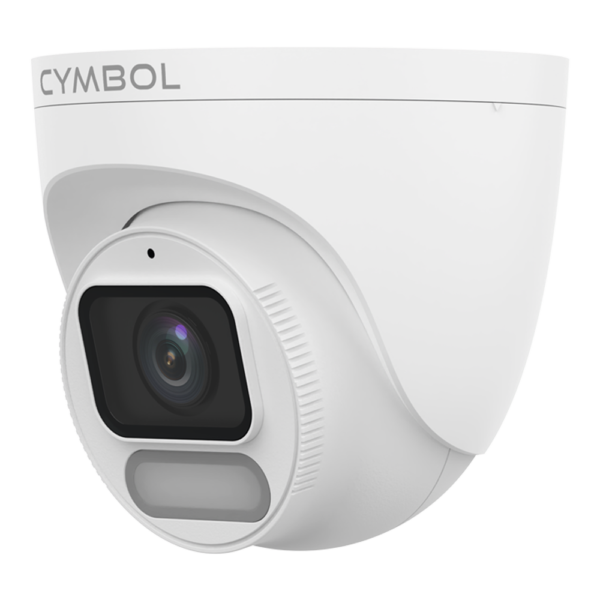

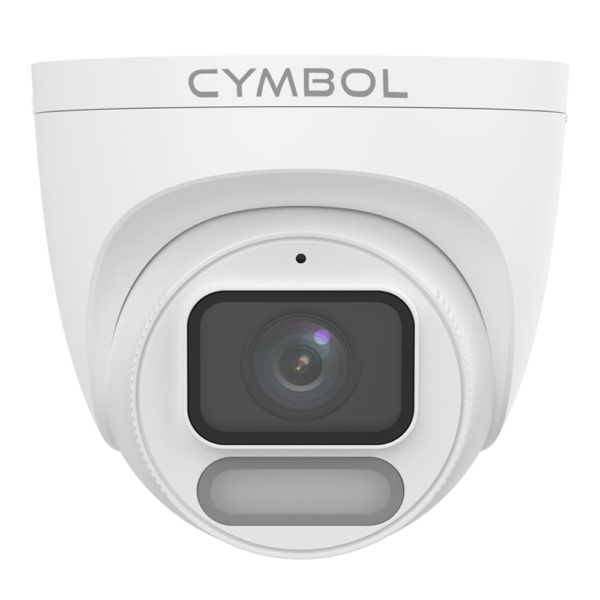

Model #: | CY-TR4MP2-8SLW | ||||||||
Camera | |||||||||
Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | ||||||||
Lens | 2.8mm@F1.0 | ||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |||||
Angle Of View (H) | 110.4° | ||||||||
Angle Of View (V) | 60.5° | ||||||||
Angle Of View (O) | 115.2° | ||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Colour: 0.0003Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
S/N | >52dB | ||||||||
Warm Light | 30m (98ft) | ||||||||
On/Off Control | Auto/Manual | ||||||||
WDR | 120db | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 Code Profile | Baseline profile, Main Profile, High Profile | ||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps Sub Stream:720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Video Stream | Dual Stream | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
Smart IR | Supported | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Counter-clockwise | ||||||||
Dewarping | Supported | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Defog | Digital Defog | ||||||||
Analytics | |||||||||
Smart Analytics w/ S.I.P. Filtering (Supports human, vehicle, & non-motor vehicle Filtering) | Ultra Motion Detection* *Only compatible with select NVRs |
||||||||
Basic Analytics | Motion detection, Tampering alarm, Audio detection, Cross Line detection‡, Intrusion detection‡, ‡ Only triggered by Humans |
||||||||
Other Functions | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication | ||||||||
Audio | |||||||||
Audio Compression | G.711; G.711A | ||||||||
Audio Bitrate | 64Kbps | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256 GB | ||||||||
Network Storage | ANR, NAS (NFS) | ||||||||
Network | |||||||||
Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||||
Client | CymCamPro Star4Live Guard Station |
||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
Interface | |||||||||
Built-in Mic | Supported | ||||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 2.8W | |||||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||||
Dimensions (Ø x H) | Φ118 x 106mm (Φ4.6” x 4.2”) | ||||||||
Net Weight | 0.48kg (1.06lb) | ||||||||
Material | Camera Housing: Metal Ring: Plastic |
||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Protection | IP67 |
