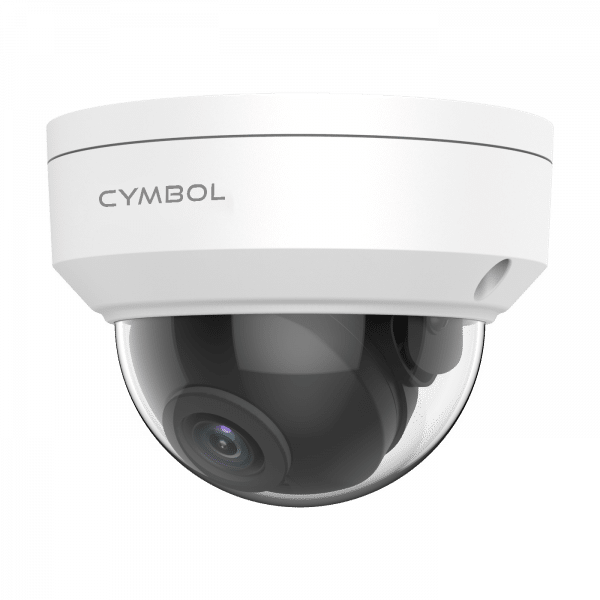

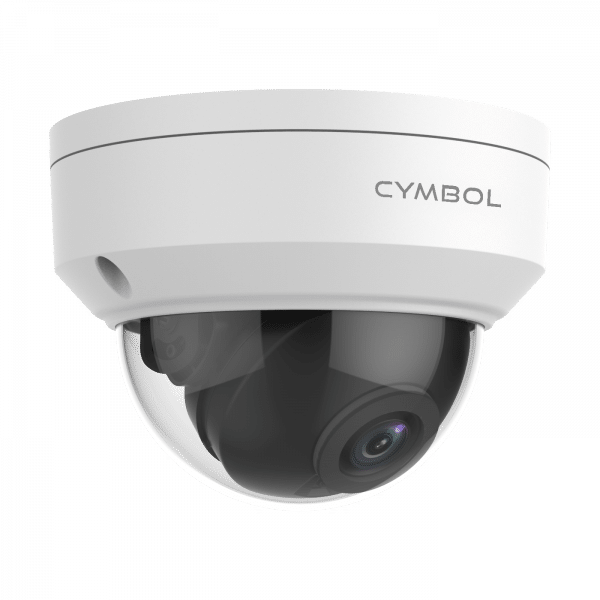

| Model #: |
CY-VPD4MP2-8SL |
| Camera |
| Sensor |
1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F1.6 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63 |
25.2 |
12.6 |
6.3 |
| Angle of View (H) |
105.3° |
| Angle of View (V) |
57° |
| Angle of View (O) |
136.9° |
| Adjustment angle |
Pan: 3° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.005 Lux (F1.6, AGC ON) |
| 0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>56dB |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps |
| Sub Stream: 720P (1280*720), Max 30fps |
| Third Stream: N/A |
| Video Bit Rate |
128 Kbps~16 Mbps |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 4 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
CymCam2 |
| Star4Live |
| Guard Station |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Audio I/O |
N/A |
| N/A |
| Alarm I/O |
N/A |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Certifications |
| Certifications |
CE: EN 60950-1 |
| UL: UL60950-1 |
| FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.5W |
| Dimensions (Ø x H) |
Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
| Net Weight |
0.42kg (0.93lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
| Reset Button |
N/A |
