Description

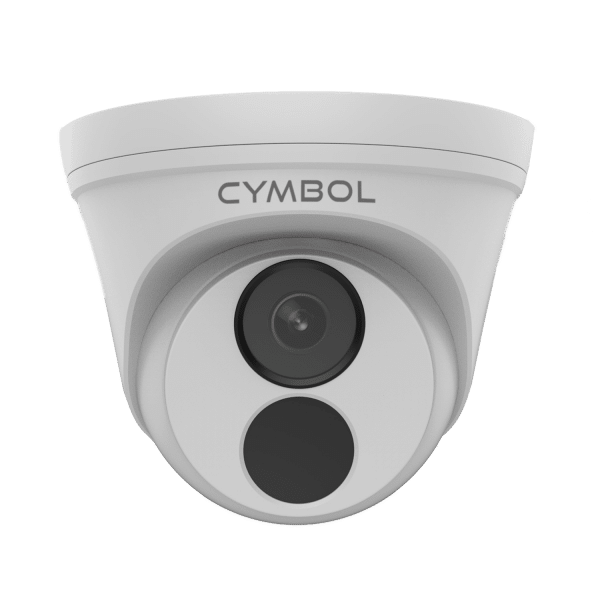

Model #: | CY-TR2MP | |||||||
Camera | ||||||||
Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8mm@F2.0 | |||||||
DORI Distance | Lens (mm) | Detect (m) | ||||||
2.8 | 46.7 | |||||||
4.0 | 66.7 | |||||||
Angle of view (H) | 112.7° | |||||||
Angle of View (V) | 60.1° | |||||||
Angle of View (O) | 146.5° | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment angle | Pan: 0° ~ 360° | |||||||
Min. Illumination | Colour: 0.02Lux (F2.0, AGC ON) 0Lux with IR |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
S/N | >52dB | |||||||
IR Range | Up to 30m (98ft) IR range | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Defog | Digital Defog | |||||||
WDR | Supported | |||||||
Noise Reduction | 2D/3D | |||||||
Video | ||||||||
Max. Resolution | 1920*1080 | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
|||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 8 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart IR | Supported | |||||||
Flip | Normal/Vertical/Horizontal/180° | |||||||
Dewarping | Supported | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile T),API | |||||||
Client | CymCam2 Star4Live Guard Station |
|||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
Interface | ||||||||
Network | 10/100M Base-TX Ethernet | |||||||
Certifications | ||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 4.5W | ||||||||
Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | |||||||
Net Weight | 0.2kg (0.44lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | |||||||
Strorage Environment | -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 2KV | |||||||
Ingress Protection | IP67 |
